GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX

GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX
GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX
GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX
GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX
GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX
GIGABYTE MB Sc AM5 B650E AORUS STEALTH ICE, AMD B650, 4xDDR5, 2x HDMI, 1xUSB-C, WI-FI, E-ATX

Formát:E-ATX; Chipset:AMD B650; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:1

Vaša cena:
Dostupnosť: Skladom 1 ks
Kód:
524979
P/N:
B650E A STEALTH ICE
Záruka:
36 Měsíc(ů)
Výrobca:
Gigabyte
Zástupca v EÚ:
EAN:
4719331863777
Porovnať produkt

Podrobnosti

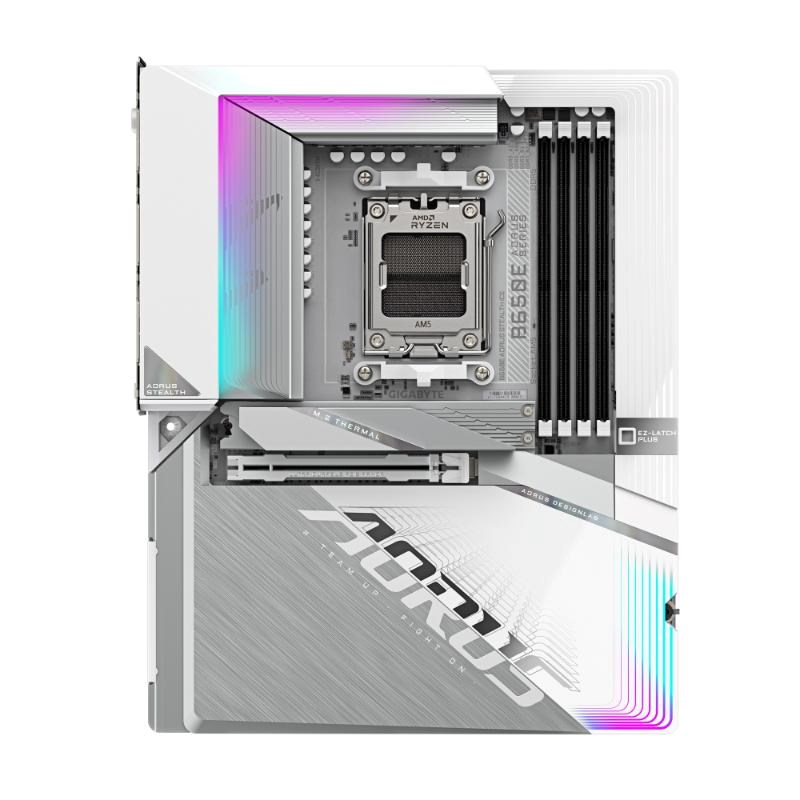

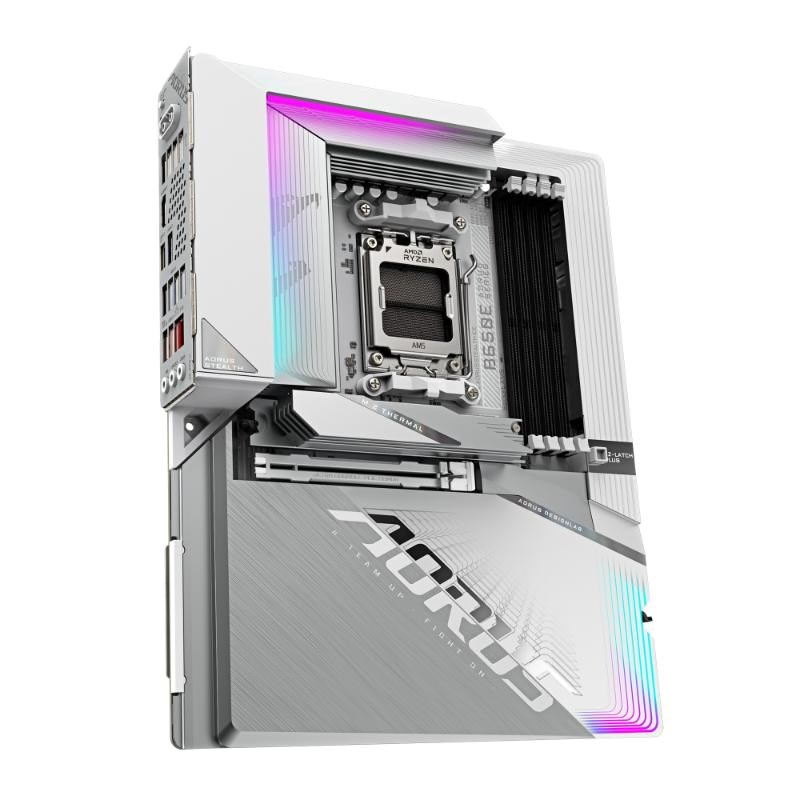

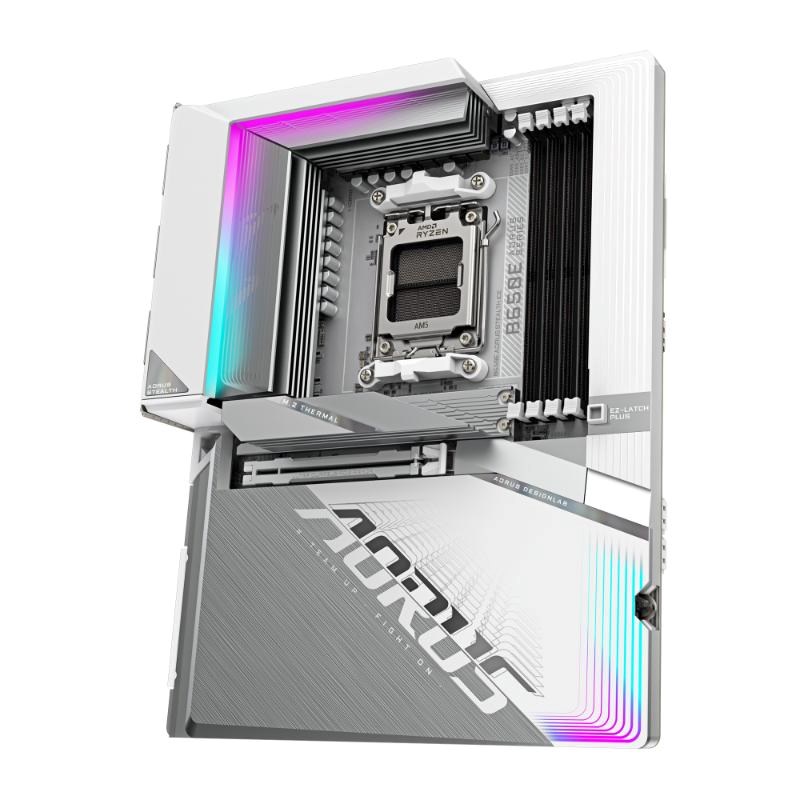

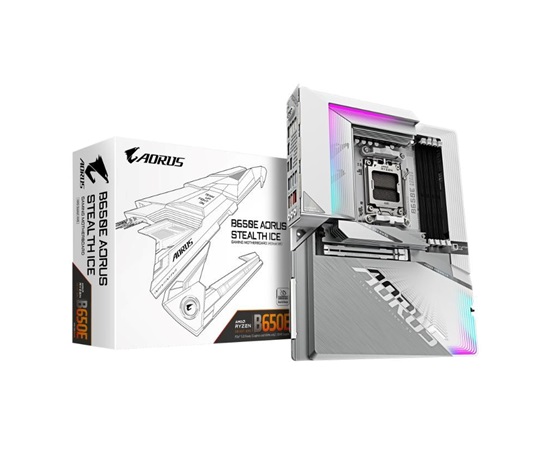

GIGABYTE B650E AORUS STEALTH ICE

  • AMD Socket AM5:Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
  • Digital twin 12+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • UC BIOS:User-Centred intuitive UX with Quick Access function

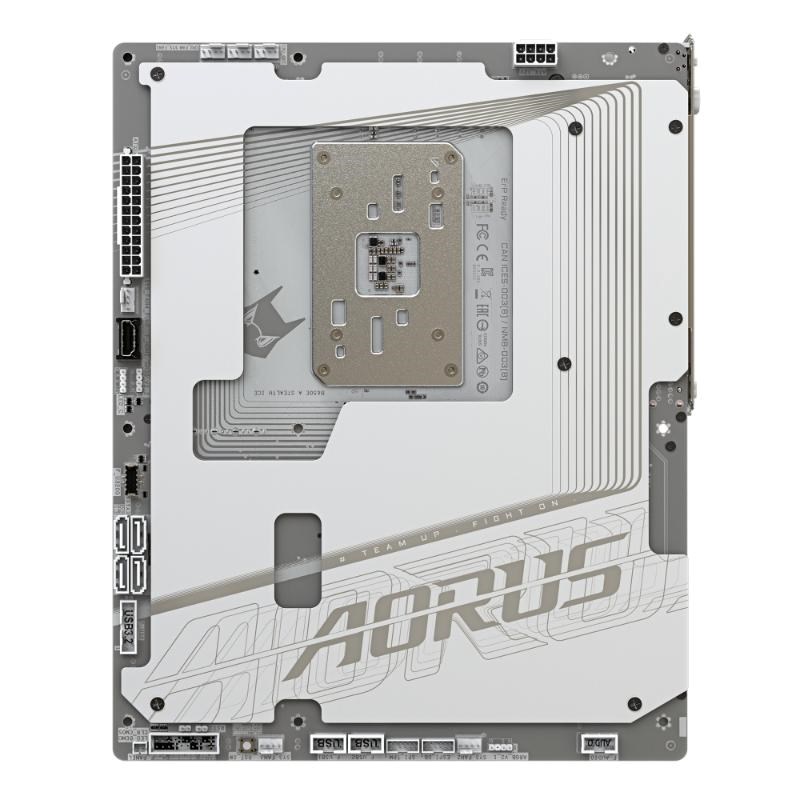

  • Back Plate : With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality
  • Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
  • Extended Connectivity:HDMI, Onboard HDMI, USB-C with DP-Alt
  • Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors
  • World's First true White Reverse Connector Motherboard


CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)


Chipset

AMD B650


Memory

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)of system memoryDual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs
and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)


Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.


LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Wireless Communication module

MediaTek Wi-Fi 7 MT7925
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.


Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices


USB

CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 (Note1)
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
(Note 1) This USB Type-C® port supports a maximum speed of 40Gbps. Actual support may vary by CPU.


Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note2)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
(Note 2) Only available with the AMD Radeon™ Graphics Processors.

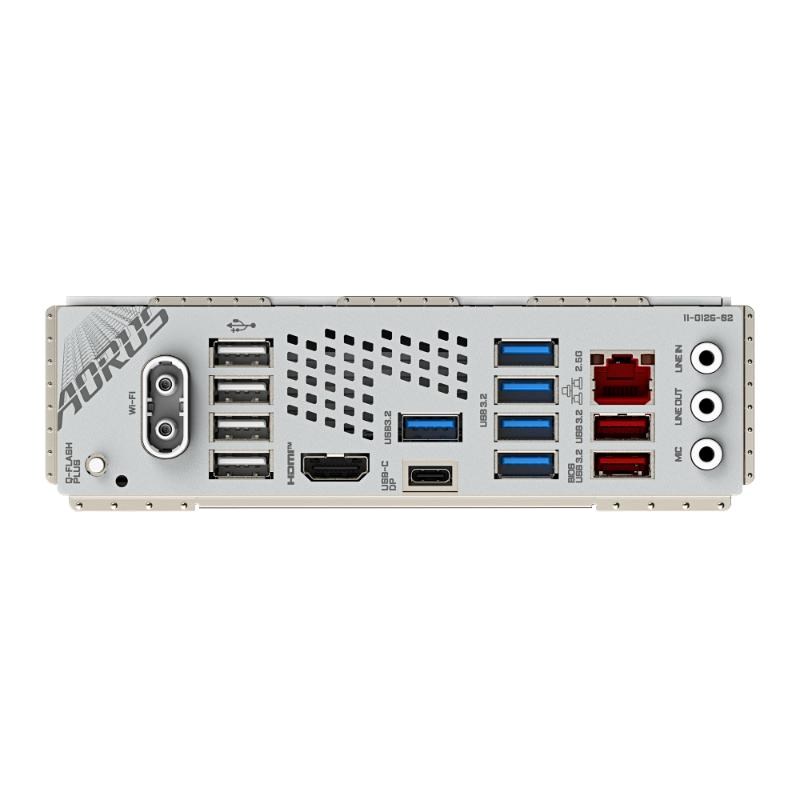

Back Panel Connectors

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks


I/O Controller

iTE® I/O Controller Chip


H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.


BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus


Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software


Operating System

Support for Windows 11 64-bit


Form Factor

E-ATX Form Factor; 30.5cm x 24.4cm
