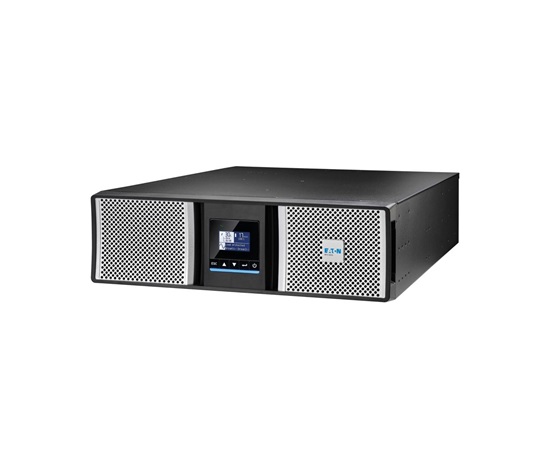

Eaton 9PX 5000i RT3U Netpack, UPS 5000VA, LCD G2

Promoakcia Novinka
Eaton 9PX 5000i RT3U Netpack, UPS 5000VA, LCD G2
Eaton 9PX 5000i RT3U Netpack, UPS 5000VA, LCD G2

Počet zásuviek:10; Účel použitia:Server, Data Center; Prevedenie:Tower/Rack covertible; VA:5000; Výška v racku:3U; Topológia:On-Line; Fáza (Vstup/Výstup):1:1; Komunikácia:Management karta; Možnosti rozšírenia:Predĺženie záložného času

Vaša cena:
Dostupnosť: Obvykle 10 dní
Kód:
149599
P/N:
9PX5KIRTNG2
Záruka:
24 Měsíc(ů)
Výrobca:
Eaton
Zástupca v EÚ:
EAN:
3553340710551
Porovnať produkt

Podrobnosti

General specifications

Product Name
Eaton 9PX Gen2 UPS
Catalog Number
9PX5KIRTNG2
EAN
3553340710551
Product Length/Depth
684 mm
Product Height
130 mm
Product Width
440 mm
Product Weight
43.1 kg
Warranty
3 year on electronics, 2 year on battery
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Batteries Directive
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
ENERGY STAR certified
CE
cULus
UKCA
Cm
Ukr
RCM
Model Code
Eaton 9PX 5000i RT3U Netpack G2

Baterie

Battery type
Sealed, lead-acid

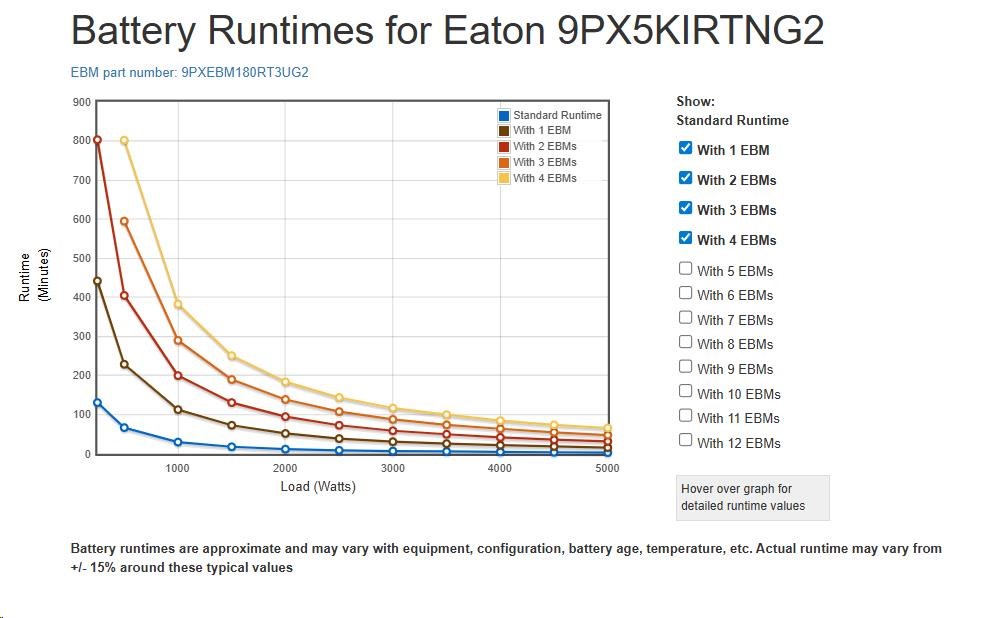

Runtime graph
Battery quantity
15
Battery management
  • ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)
  • Automatic battery test
  • Deep discharge protection
  • Automatic recognition of external battery units
Battery rating
12 V / 5 Ah
Extended battery capability
Yes

Výstup

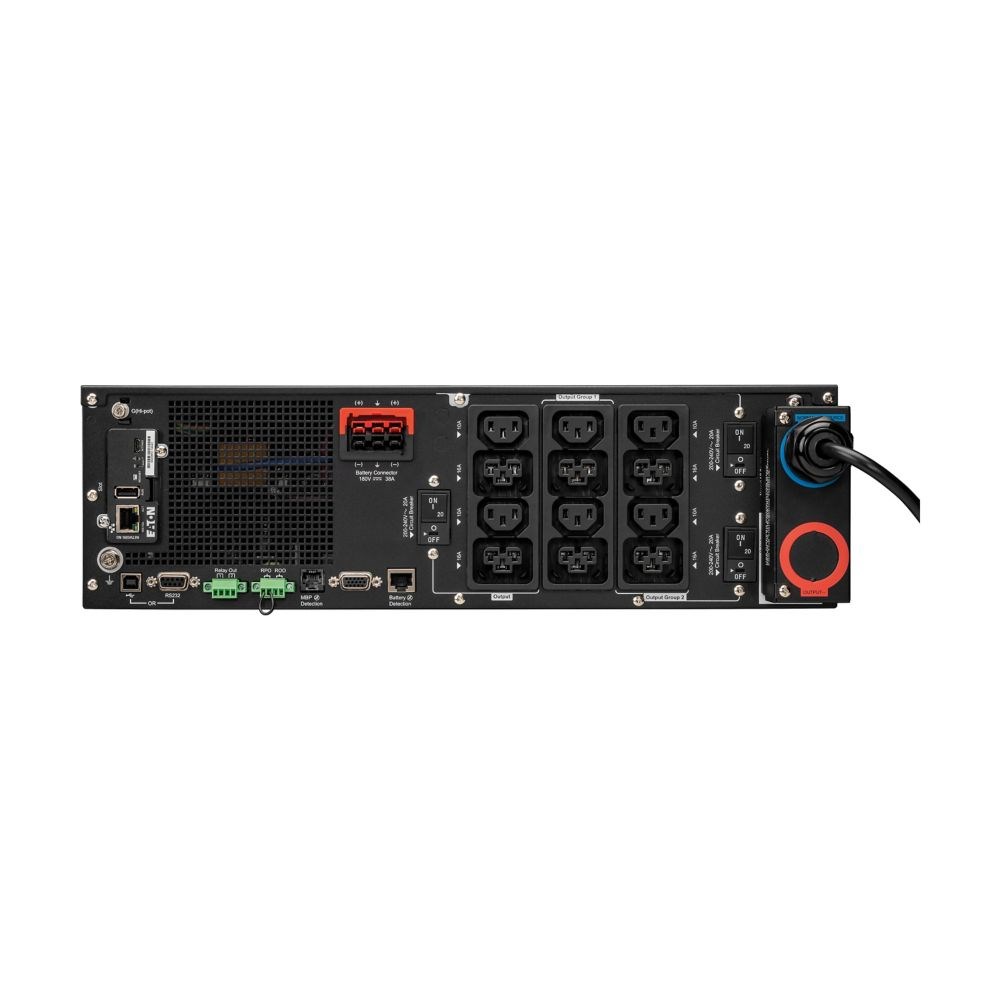

Receptacle
(6) C13, (6) C39, Hardwired
Voltage
230V
VA rating
5000 VA
Wattage
5000W
Output power factor
1
Output voltage range
200/208/220/230/240 V +/- 1%
Output waveform
Sine wave
Output nominal voltage
230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max
1
Feed type
1
Topology
Online/Double-conversion

Vstup

Nominal frequency
50/60 Hz
Input power factor
>.99
Input voltage range
176-276 V (100-276 V with derating)
Input frequency range
40-70 Hz

Novinky a informační sdělení

Includes network card
Yes
Communication
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini terminal block for remote On/Off
  • Mini-terminal block for remote power off
  • Mini-terminal block for dry contacts outputs (2 contacts)
  • Network card
Ethernet interface
Yes
User interface
Multilingual graphical LCD display
Potential free switch contact
Yes
Expansion slots
One slot, network card included
Software compatibility
Eaton Brlightlayer Software suite
Type of interface
Other

Prostředí

Altitude
3000 m
Noise level
<40 dB at 1 meter
Temperature range
0° to 40°C (32° to 104°F)
Relative humidity
0-95% non-condensing

Další specifikace

Construction type
482.6 mm (19 inch) device
Package contents
  • UPS
  • (2) cable glands
  • (2) IEC-IEC output cables (1,2m)
  • USB cable (1,8m)
  • Network Management Card
  • Supports for tower mounting
  • Rack-mounting kit with brackets and slides for UPS
  • Safety instructions
  • Quickstart guide
Internal bypass
Yes
Auto shutdown function
Yes
Color
Black/silver
Efficiency at max. load
96.7
Rack mounting kit
Yes
Hot swap power
No
