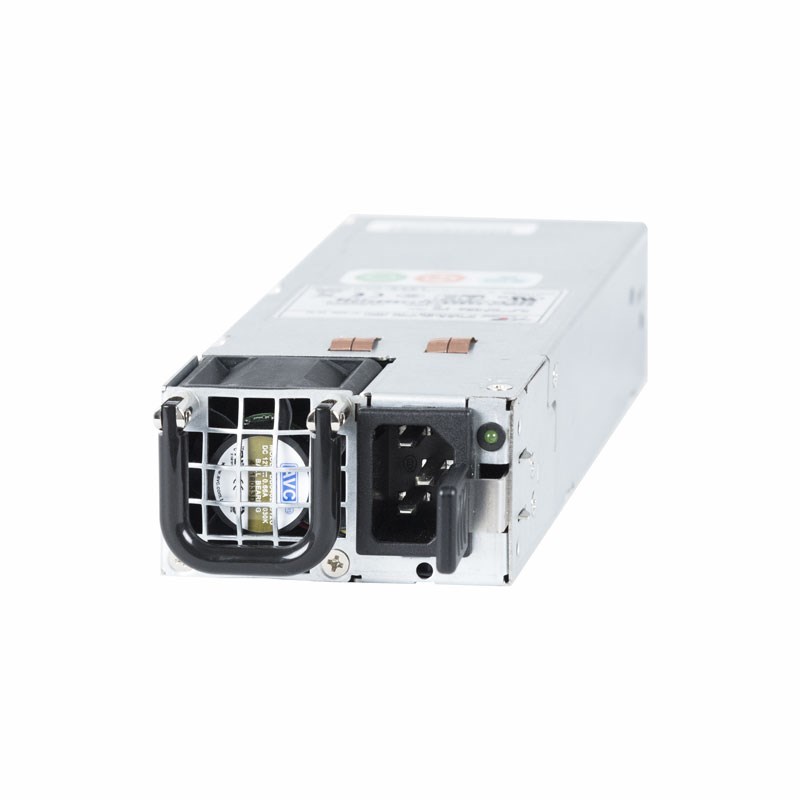

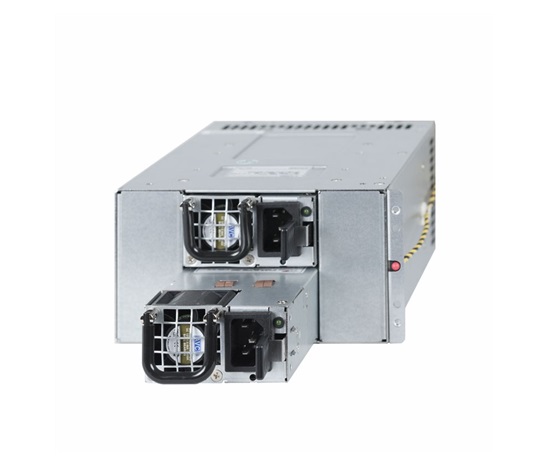

CHIEFTEC redundantní zdroj MRZ-5AF0K2V, 2x1600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum

CHIEFTEC redundantní zdroj MRZ-5AF0K2V, 2x1600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum
CHIEFTEC redundantní zdroj MRZ-5AF0K2V, 2x1600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum

Formát zdroja:ATX; Konektory:8pin CPU 1x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pre základnú dosku:ATX 20-pin, ATX 24-pin, EPS 8-pin

Vaša cena:
Dostupnosť: Obvykle 30 dní
Kód:
1022632
P/N:
MRZ-5AF0K2V
Záruka:
24 Měsíc(ů)
Výrobca:
Chieftec
Zástupca v EÚ:
EAN:
0753263076700
Porovnať produkt

Podrobnosti

Performance

Model MRZ 1600W
Article no. MRZ-AF0K2V
EAN code 0753263076700
Weight (without/with package) 5.2 kg / 5.7 kg
AC Input 100 - 240V / 8-10.5A
Frequency 47 - 63Hz
+5V 25A
+3,3V 25A
+5V & +3,3V combined 180W
+12V 1 133A
+12V 2 -
+12V 1 & +12V 2 combined -
P.F. >0,9
-12V 0.5A
+5VsB 3.5A
Maximum Power 1600W

Connectors

20+4PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN EPS 1
8 PIN PCIe (6+2) 8
SATA 8
MOLEX 6
MOLEX/FLOPPY 2
TTL Signal 1
LED (Total Power) 1
BUZZER RESET/PUSH SW 1
PMBus SIGNAL 1

Cable length

20+4PIN ATX 550
8 PIN EPS (4+4) 550
8 PIN EPS 550
8 PIN PCIe (6+2) 4x 550/200
SATA 4x 550/200
MOLEX 3x 550/200
MOLEX/FLOPPY 550/200
TTL Signal 1070
LED (Total Power) 1070
BUZZER RESET/PUSH SW 770/200
PMBus SIGNAL 500

Features

Specification ATX 12V 2.3
Form factor PS II mini redundant
Efficiency 80 PLUS® Platinum
Dimension (DxWxH) 222mm x 150mm x 86mm
PFC Active PFC
Fan 2x 40mm fan (1 fan per module)
Security
  • OCP (Over Current Protection)
  • OPP (Over power protection)
  • OTP (Over Temperature Protection)
  • OVP (Overvoltage Protection)
  • SCP (Short Circuit Protection)
  • UVP (Over Voltage Protection)
Warranty 24 Months

Technické parametre
