BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)

Dopredaj Bazár
BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)

Formát:ATX; Chipset:AMD; Socket (pätica):Socket AM4; Typ pamäťového modulu:DDR4; Podpora RAID:1, 10; PCI express 16x:Více než 1; Integrovaná grafická karta; Integrovaná LAN karta:2; Ďalšie rozhranie:S/PDIF

Vaša cena: už sa nepredáva
Kód:
2648028
P/N:
MAG B550 TOMAHAWK_BAZAR
Záruka:
12 Měsíc(ů)
Výrobca:
MSI
Zástupca v EÚ:
EAN:
2648028

Podrobnosti

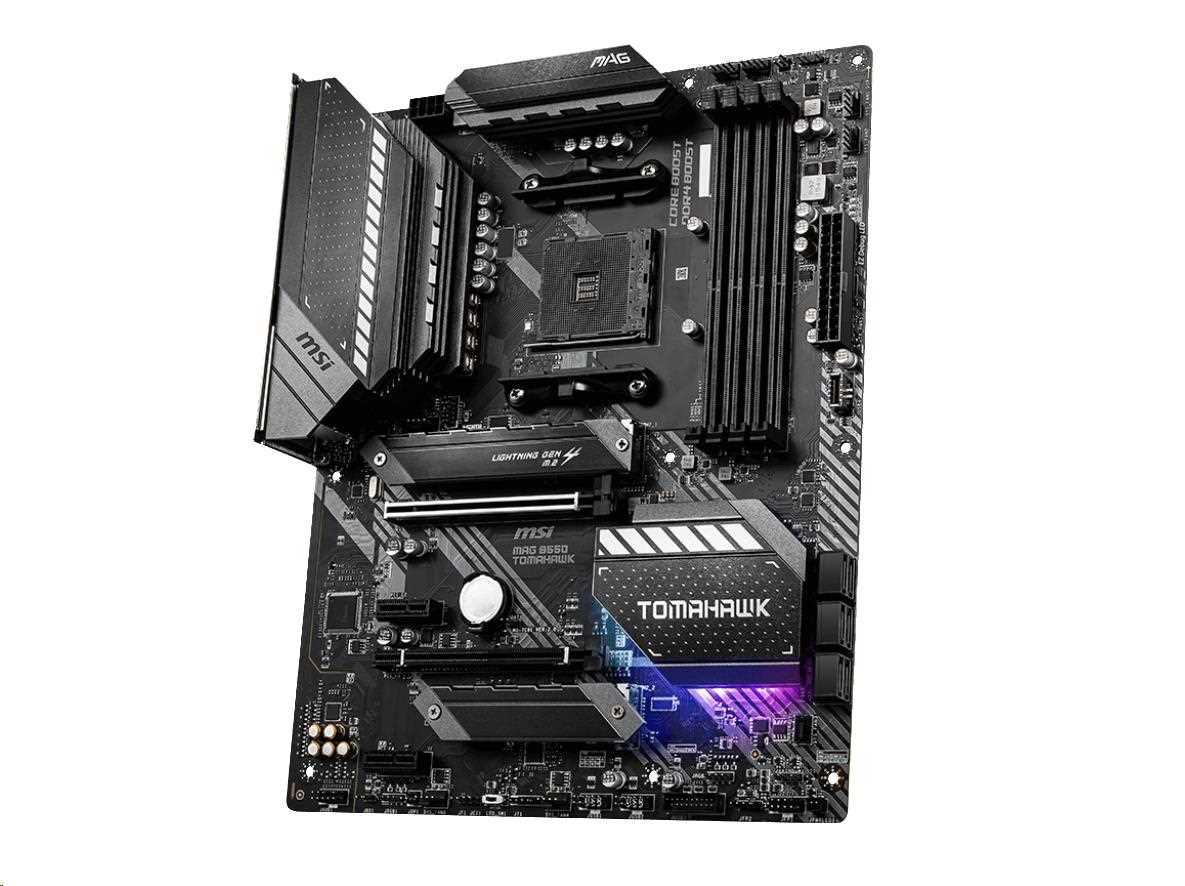

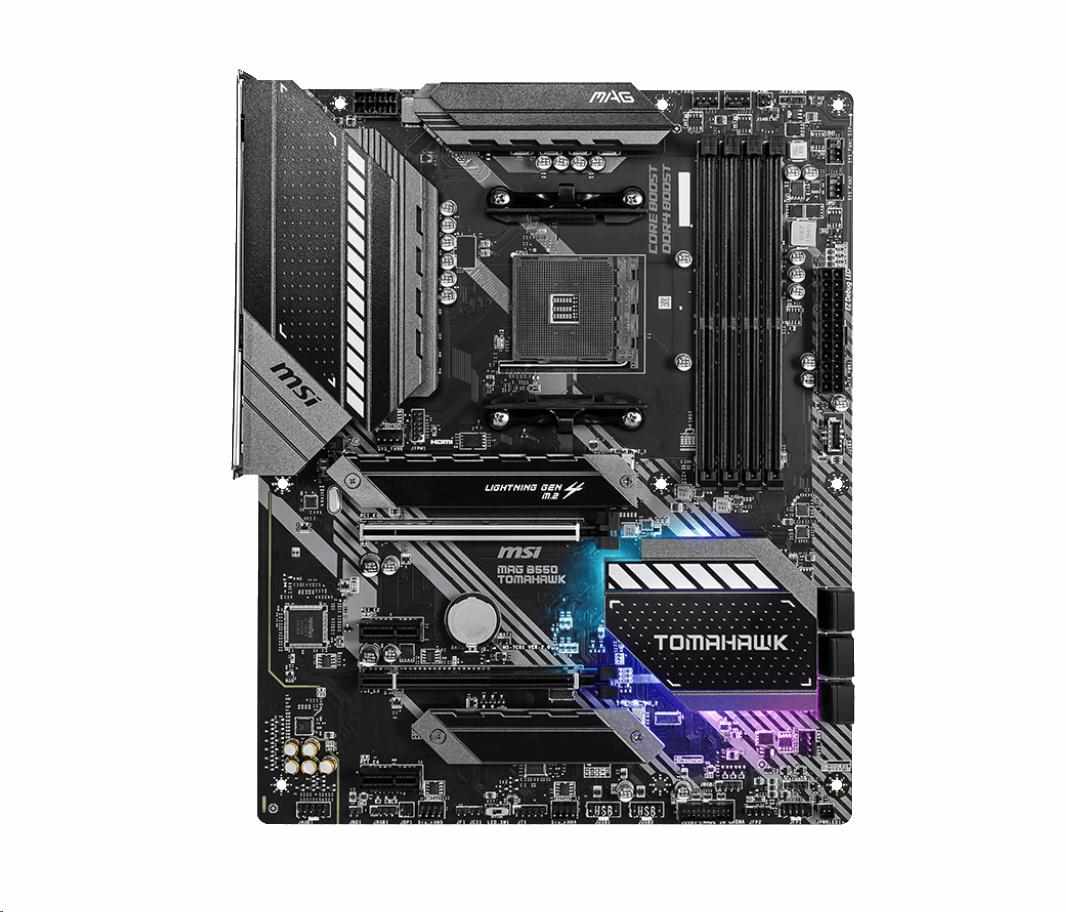

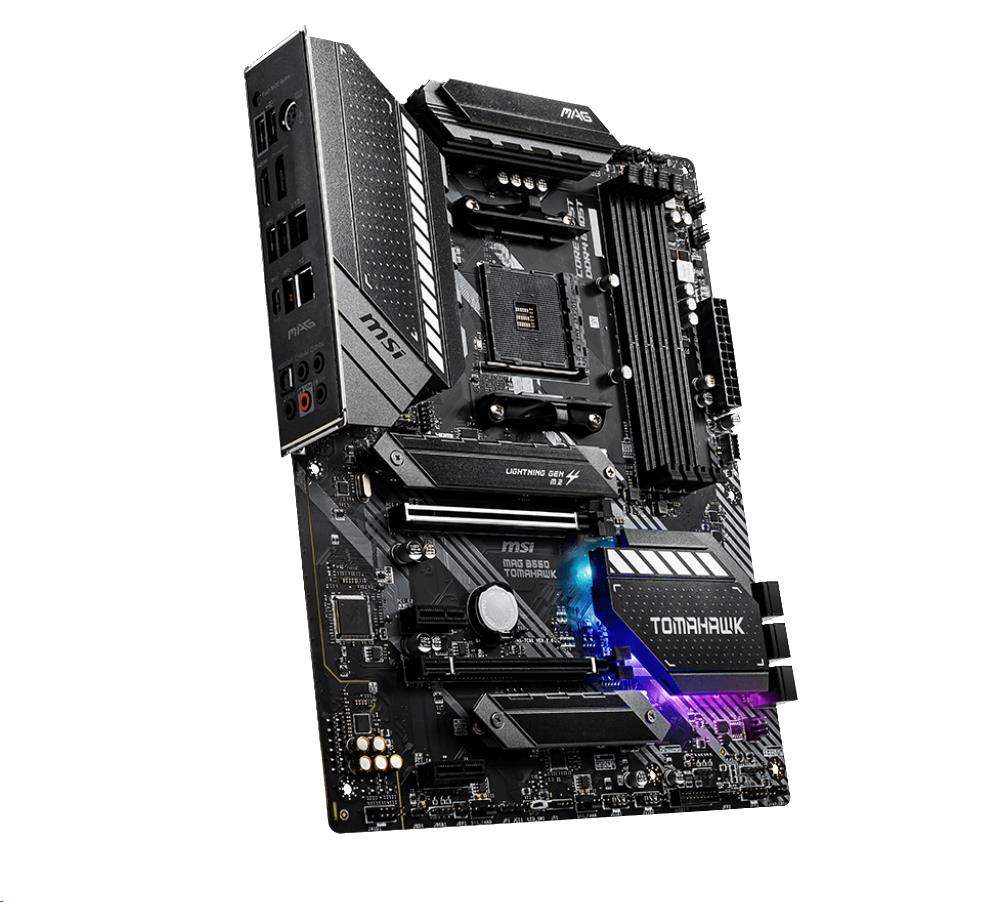

MAG B550 TOMAHAWK

TECHNICAL SPECIFICATIONS

CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 128GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/
  • 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 5100 MHZ
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Slots
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
    The supported specification depends on installed processor.
    When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Multi-GPU
  • Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • Maximum shared memory of 2048 MB
    Available for the processor with integrated graphics.
Storage

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
  • Realtek® ALC1200 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
  • 1x Realtek® RTL8111H 1Gbps LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

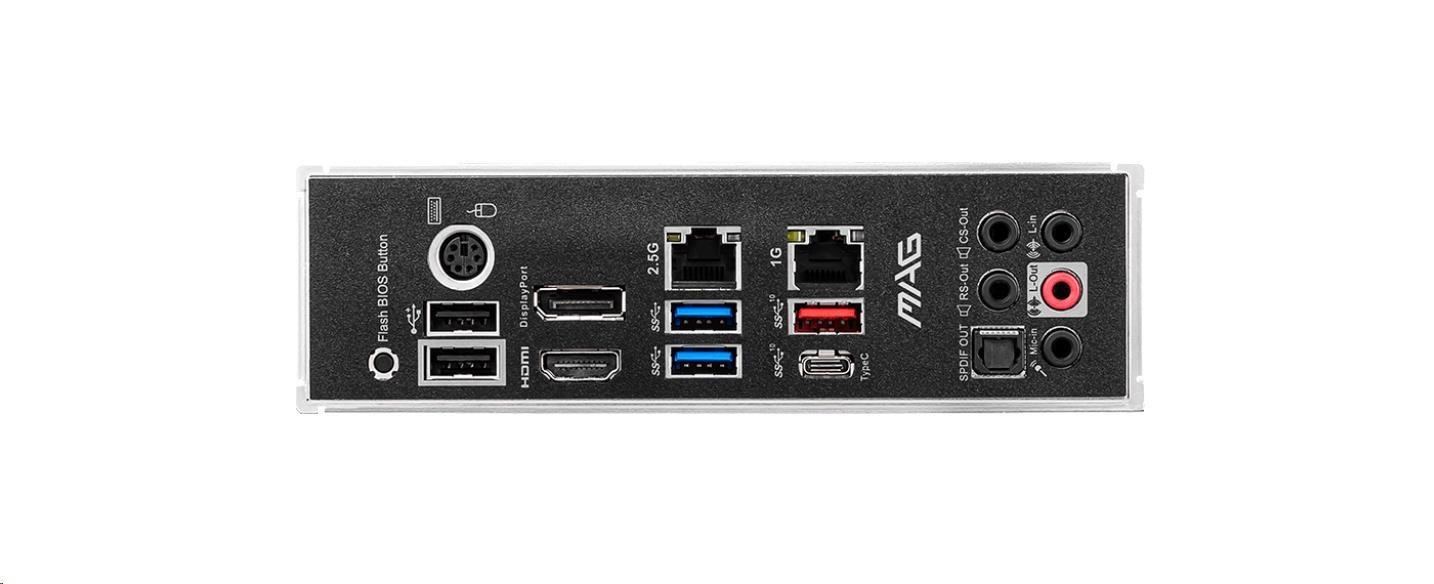

Back Panel Ports
  • PS/2 Combo Port
  • DisplayPort
  • 2.5G LAN Port
  • 1G LAN Port
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Port
  • HDMI Port
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting
  • 9 mounting holes
