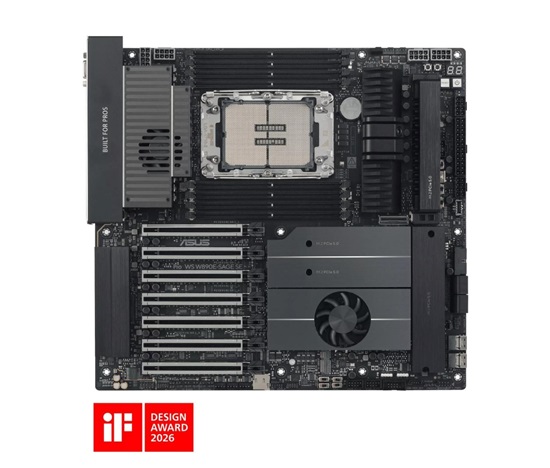

ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB

Novinka
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB

Formát:EEB; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:7

Vaša cena:
Dostupnosť: Skladom 3 ks
Kód:
1887869
P/N:
90MB1LH0-M0EAY0
Záruka:
36 Měsíc(ů)
Výrobca:
Asus
Zástupca v EÚ:
ASUS COMPUTER GmbH
EAN:
4711636389372
Porovnať produkt

Podrobnosti

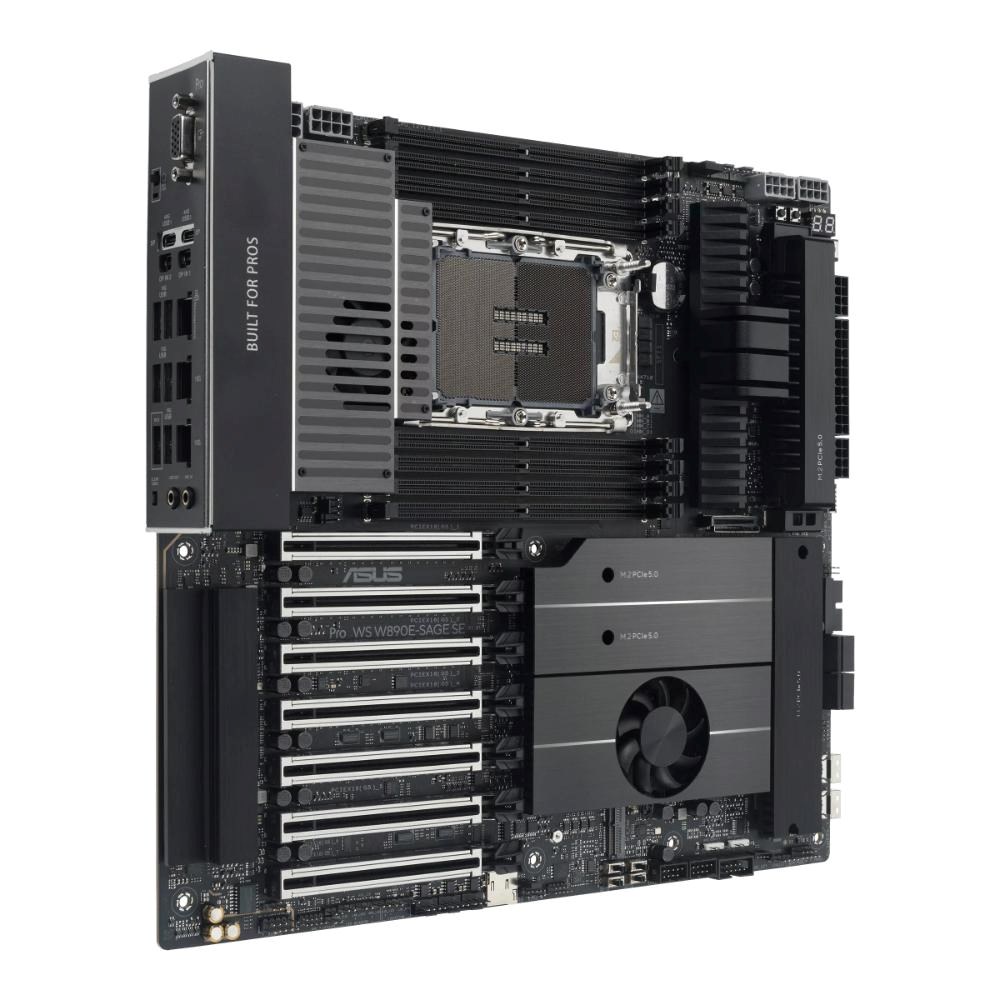

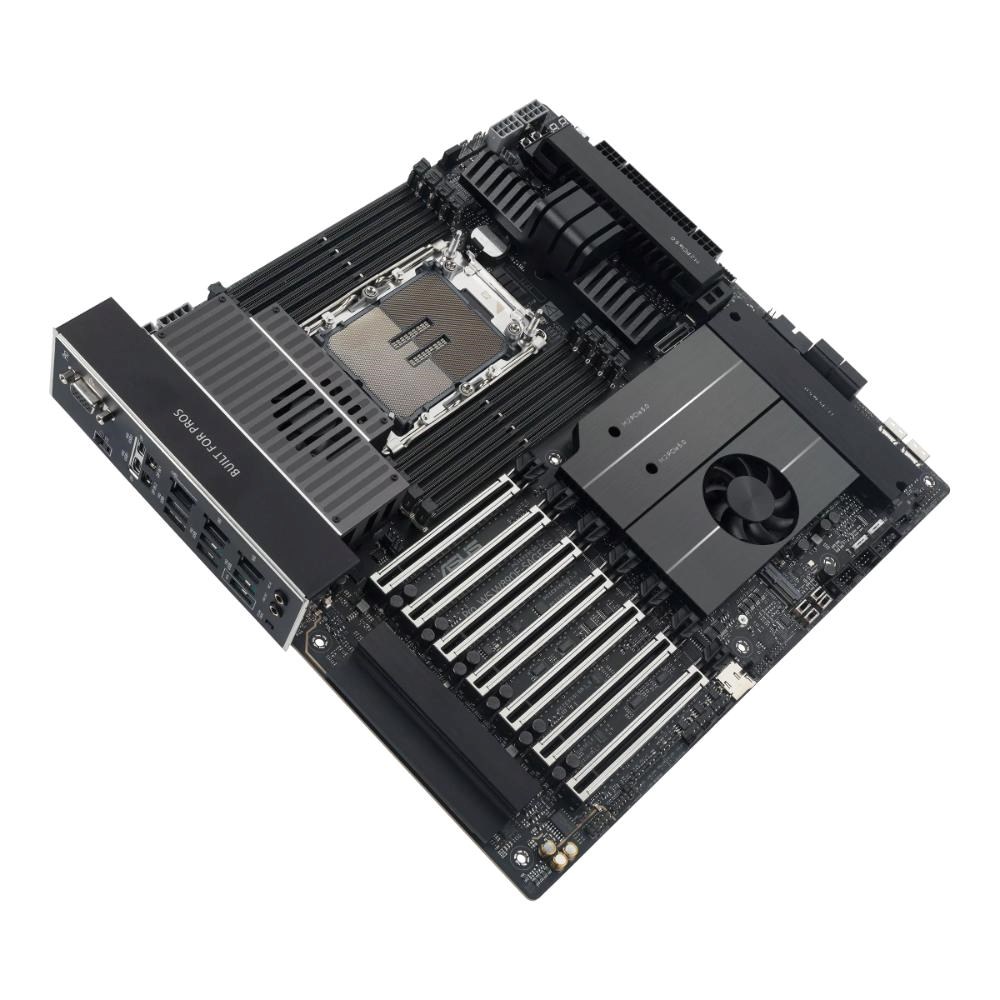

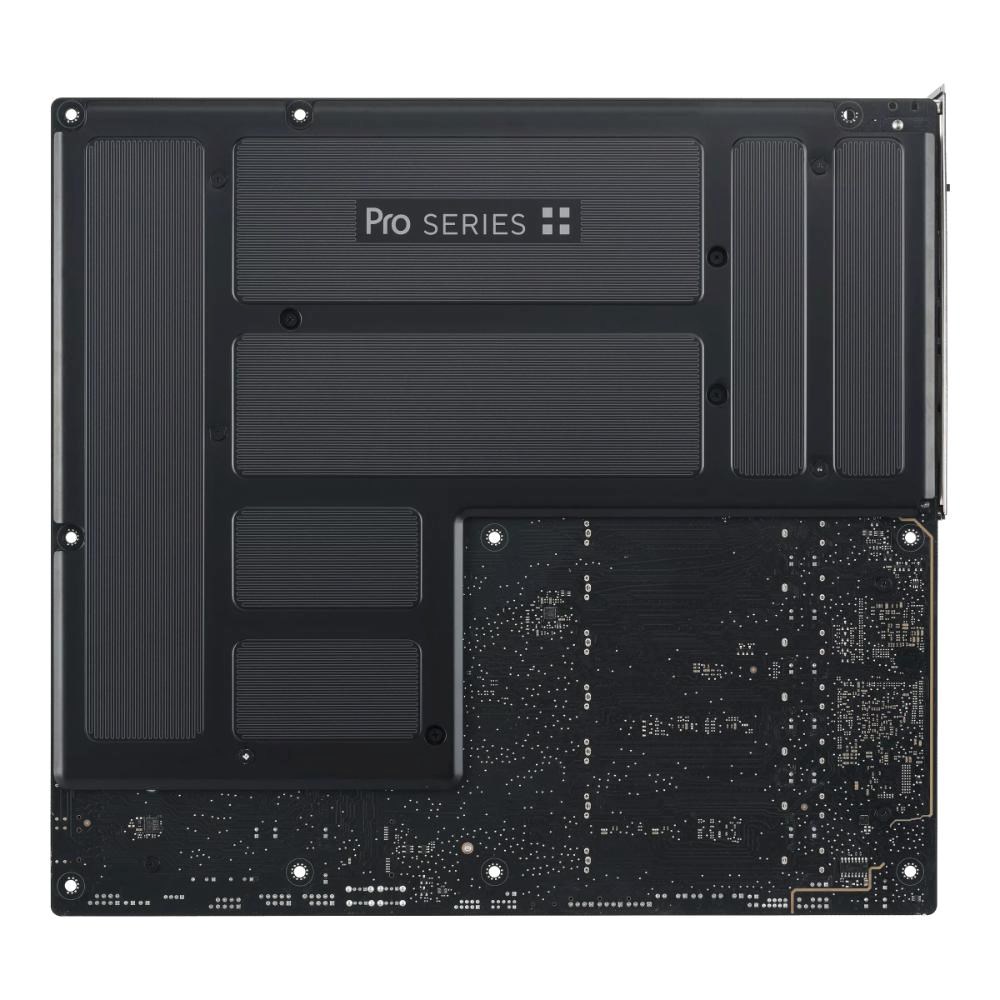

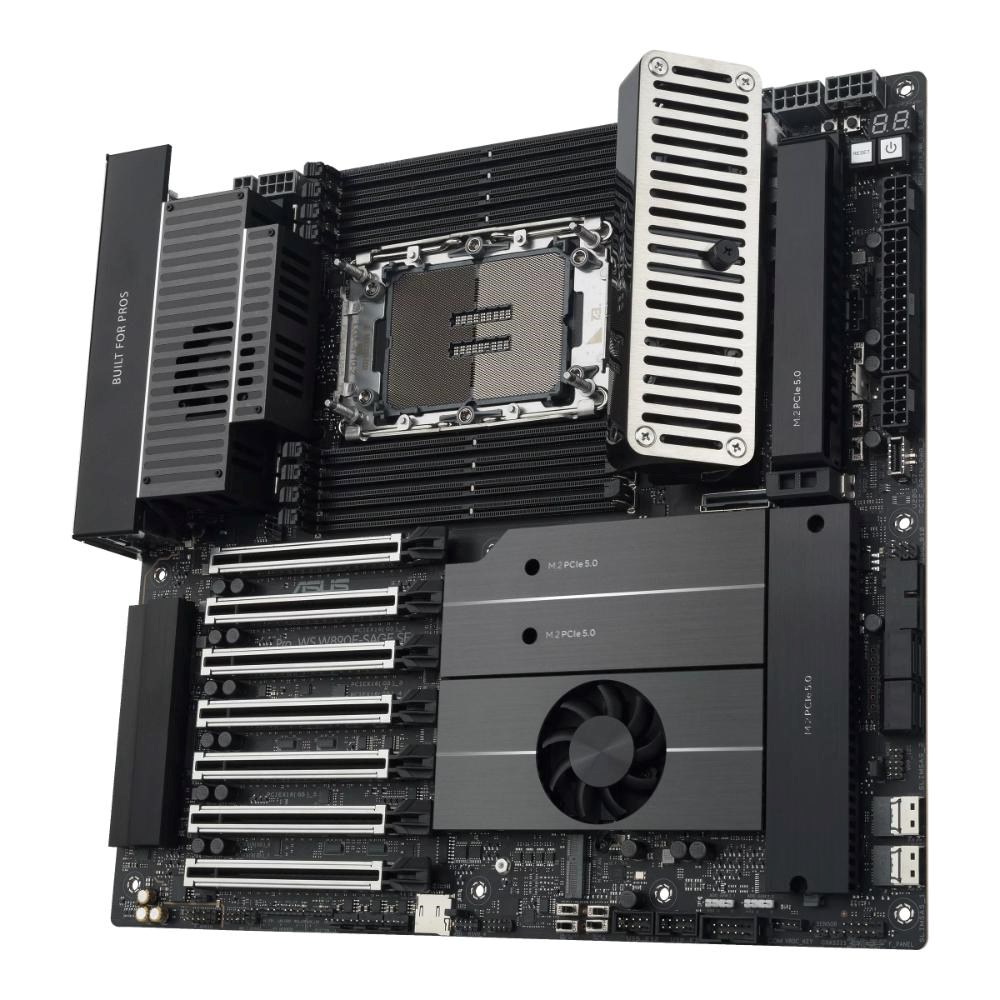

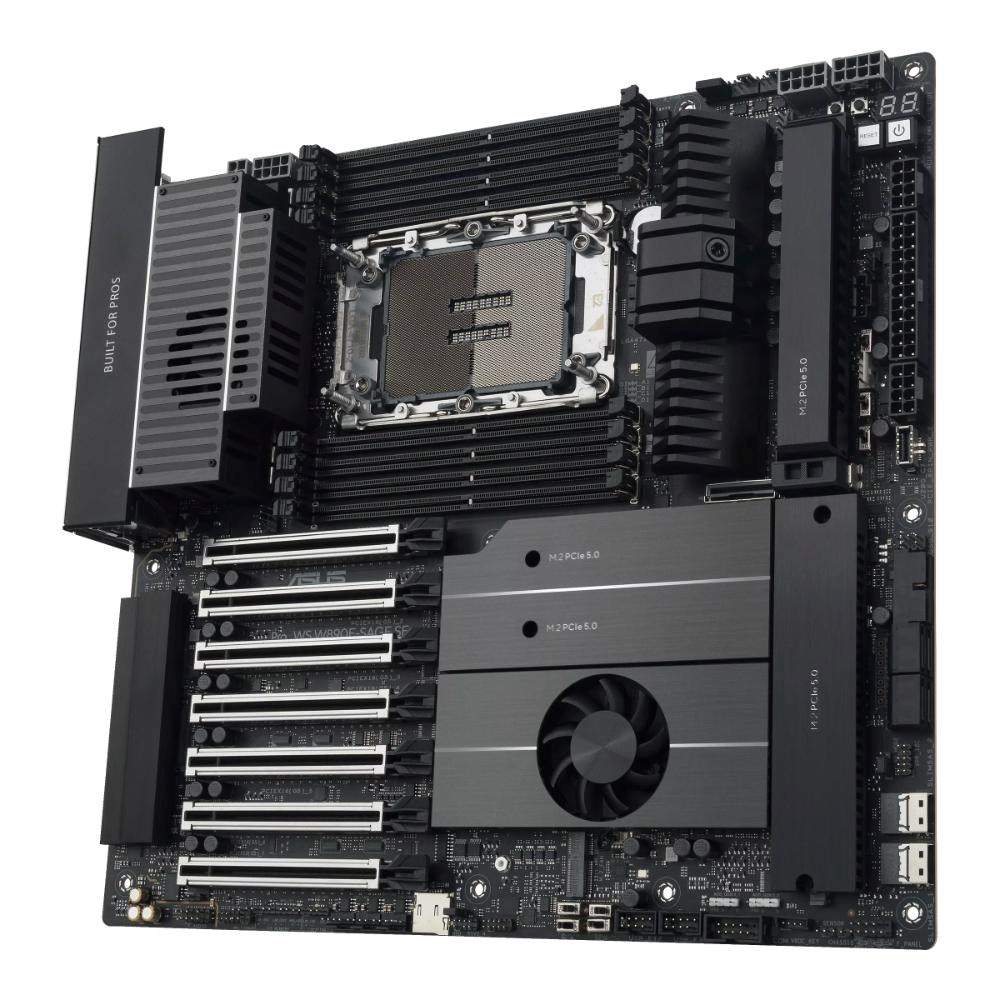

ASUS Pro WS W890E-SAGE SE


  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
  • Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
  • CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
  • Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Model

Pro WS W890E-SAGE SE

News & Updates

LGA4710-2

CPU

Intel® Socket LGA4710-2 for Xeon® 600 Processors for Workstation

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® W890 Chipset

Memory

8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*

8-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

* Only channels A, C, E, and G will function when an Intel® Xeon® 630 Series Processor is in use.

** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

Graphics

1 x VGA port from AST2600

2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs*

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Output at USB4® Type-C® ports requires Mini DisplayPort IN to DisplayPort adapter cable.

*** The display function depends on CPU or GPU.

Expansion Slots

Intel® Xeon® 690/670/650 Series Processors*

7 x PCIe 5.0 slot(s)

Intel® Xeon® 630 Series Processor*

7 x PCIe 5.0 slot(s)

* Specifications vary by CPU types.

Storage

Total supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb/s ports

M.2 slots support PCIe 5.0

SlimSAS supports PCIe 4.0

Supports Intel® VROC and VMD

Ethernet

1 x Intel® dual 10Gb Ethernet

1 x Realtek 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Wi-Fi module sold separately)

USB

Rear USB: 2 x USB4®, 6 x USB 10Gbps

Front USB: USB-C, USB 5Gbps, USB 2.0 headers

Audio

Realtek ALC1220P 7.1 Surround Sound

High quality playback and recording

* 32-Bit/192 kHz not supported for 7.1

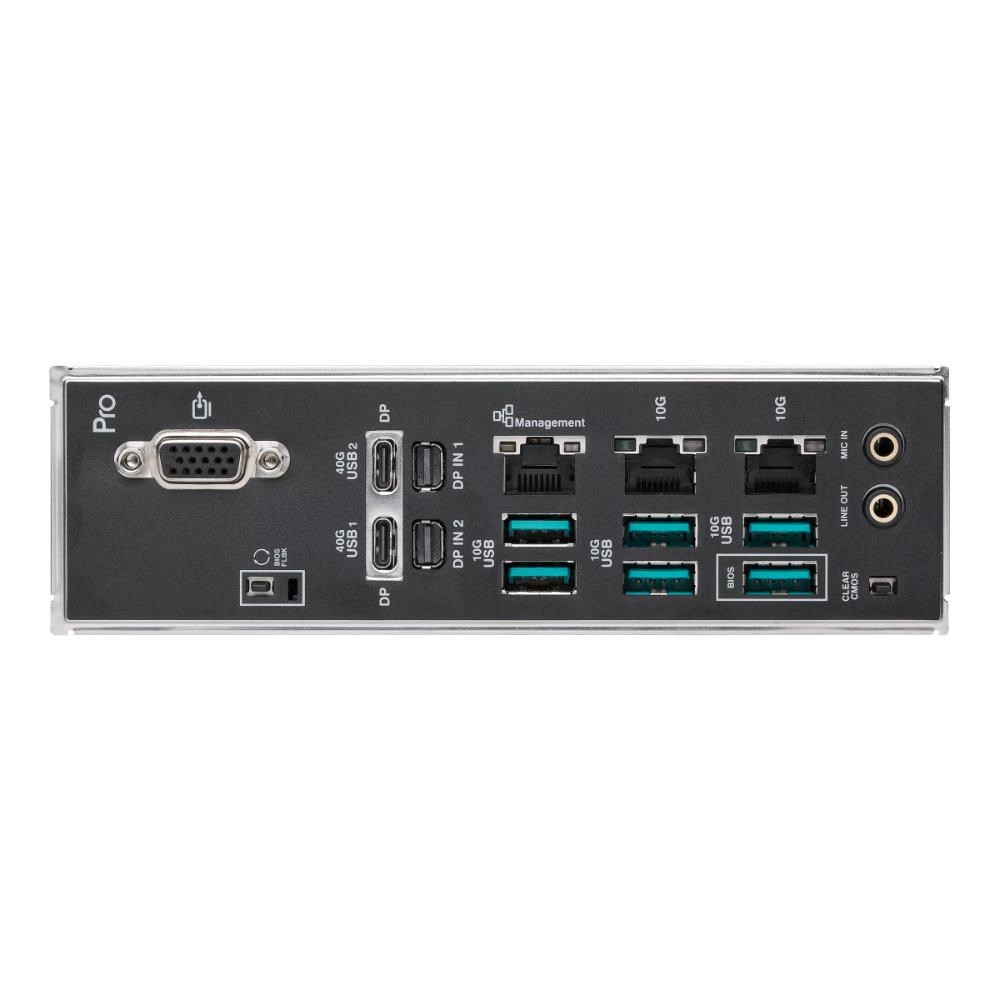

Back Panel I/O Ports

USB4®, USB 10Gbps, VGA, LAN, Audio jacks, BIOS FlashBack™

Internal I/O Connectors

Fan headers, power connectors, storage connectors, USB headers

RGB headers, buttons, sensors

Special Features

ASUS 5X PROTECTION III

ASUS Q-Design

ASUS Thermal Solution

ASUS EZ DIY

Aura Sync

Software Features

Armoury Crate, ASUS DriverHub, WinRAR, Norton 360

UEFI BIOS utilities

Remote Management Features

ASUS Control Center Express (ACCE)

BMC Related

Switches, LEDs, microSD, monitoring features

BIOS

512Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

SATA cables, thermistor cable, adapters

Operating System

Windows 11

Form Factor

EEB Form Factor

12 inch x 13 inch (30.5 cm x 33 cm)

Technické parametre
