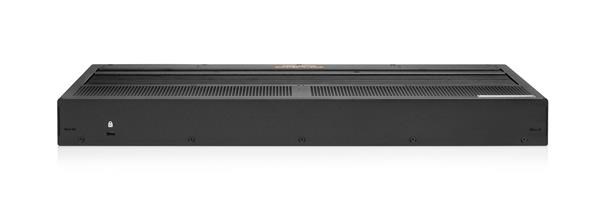

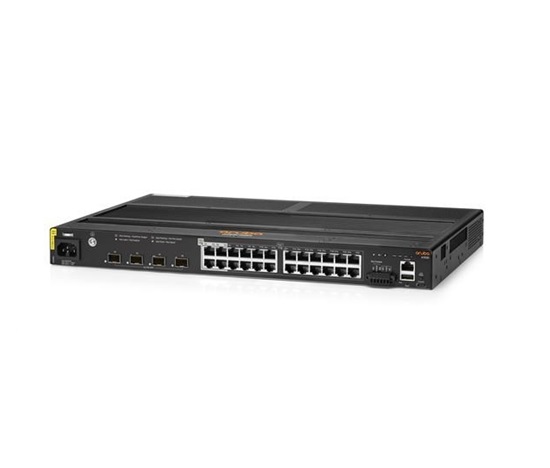

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch JL818AR RENEW
Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:24; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch
Podrobnosti
Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch JL818AR RENEW
Řada přepínačů Aruba CX 4100i je moderní řada odolných ethernetových přepínačů, které jsou ideální pro připojení IoT, přístupových bodů a uživatelských zařízení v náročných podmínkách. Přepínače Aruba CX 4100i, vytvořené pro vysoký výkon, spolehlivost a přístup se zvýšeným zabezpečením, poskytují všestranné možnosti nasazení pro podnikové sítě, které přesahují kobercové plochy i do náročných venkovních a průmyslových prostor.
Klíčové vlastnosti
- Odolnost přepínačů Aruba CX
- Výkonnost a síla
- Zjednodušená konfigurace a správa
- Inteligentní segmentace
Technické parametry
Porty a sloty
- 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
- 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
- 4x 1G/10G SFP ports
- 1x USB-C Console Port
- 1x RJ45 Console
- 1x USB Type A Host port
- 1x Alarm socket
Procesor a paměť
- 4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz
Rozměry
- V:44 mm x Š:444.5 mm x H:304.4 mm
Hmotnost
- 6,47 kg
|
Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A) |
||
|
Description |
4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port |
|
|
4x 1/10G SFP ports |
||
|
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) |
||
|
1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket |
||
|
Power Supplies |
Fixed internal power supply (300W) |
|
|
240W of PoE Power (no de-rating) |
||
|
Fans |
Fanless |
|
|
Physical Characteristics |
Dimensions |
(H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73" x 17.5" x 12.0" |
|
Weight |
6.50 kg (14.33 lbs) |
|
|
Mounting And Enclosure |
Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately |
|
|
Additional Specifications |
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Memory And Flash |
4 GB DDR3 32 GB eMMC |
|
|
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
|
|
Performance |
Model Switching Capacity |
up to 128 Gbps |
|
Model Throughput Capacity |
up to 95 Mpps |
|
|
Average Latency (LIFO-64-bytes packets) |
1 Gbps: 1.585µSec , 10 Gbps: 1.243µSec |
|
|
Switched Virtual Interfaces (dual stack) |
16 |
|
|
IPv4 host table (ARP) |
756 |
|
|
IPv6 host table (ND) |
576 |
|
|
IPv4 unicast routes |
576 |
|
|
IPv6 unicast routes |
576 |
|
|
MAC Table Size |
8192 |
|
|
IGMP Groups |
512 |
|
|
MLD groups |
512 |
|
|
IPv4/IPv6/MAC ACL entries (ingress) |
256 / 128 / 256 |
|
|
Environment |
Operating temperature |
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4.2 km (13800 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
50Hz/60Hz |
|
AC voltage |
100V-240V |
|
|
DC Input Voltage |
N/A |
|
|
Current |
max 3.9A/1.9A (240W PoE) |
|
|
Maximum heat dissipation BTU/hr |
117 BTU/hr at 230V - Room temperature (25°C) |
|
|
Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC) |
Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W
*Heater will only turn on at extreme low temperature condition |
|
|
Safety |
Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014
North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14
Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1 |
|
|
EMC |
Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013
US: FCC CFR 47 Part 15: 2018 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Taiwan (BSMI) CNS 13438 Class A
Korea KN 35:2015
Korea KN 32 Class A
Aus/NZ AS/NZS CISPR 32 Class A
Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 |
|
|
Lasers |
EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
|
|
Industry Specific Compliance |
Industrial |
EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity |
|
Power Substation |
IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking |
|
|
Railway Application |
EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment |
|
|
Traffic Control System |
NEMA TS 2-2016 |
|
|
Protection Standard |
EN 60529 IP30 |
|
|
Immunity |
Generic |
EN 55035, CISPR 35, KN35 |
|
EN |
EN 55035, CISPR 35 |
|
|
ESD |
EN 61000-4-2 (air - 15kV, contact - 8kV) |
|
|
Radiated |
EN 61000-4-3 (10V/m UTP, 20V/m STP) |
|
|
EFT/Burst |
EN 61000-4-4 4kV (1kV UTP, 4kV STP) |
|
|
Surge |
EN 61000-4-5 2kV/4kV(UTP) |
|
|
Conducted |
EN 61000-4-6 (3Vrms UTP, 10Vrms STP) |
|
|
Power Frequency Magnetic Field |
EN 61000-4-8 (100A/m 1min,1000A/m 1sec) |
|
|
Damped Oscillatory Magnetic Field |
EN 61000-4-10 (100A/m) |
|
|
Conducted CM Disturbances |
EN 61000-4-16 (30V, Cont/300V, 1 sec) |
|
|
Ripple Immunity DC Power |
EN 61000-4-17 (10%) |
|
|
Damped Oscillatory Wave |
EN 61000-4-18 (2.5kV, 1MHz) |
|
|
Voltage Dips and interruptions |
EN 61000-4-29; EN 61000-4-11 (Level 3) |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 & 64 (operation & nonoperation) |
|
Shock |
IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple) |
|
|
Railway Application |
Compliance to EN 50155 (mounting) & IEC 61373 |
|
|
Mounting and Enclosure |
Mounts to an EIA/TIA standard 19" telco rack. Mounting brackets included with product. |
|
|
Wire |
Power Input |
C15 Connector |
|
Alarm connector |
AWG 18-16 |
|
|
PoE Budget |
240W no derating. |
|
Technické parametre
- Prevedenie: Rack mounted 19"
- Funkce: QoS (Quality of service)
- Funkce: VLAN (virtual local area network)
- Funkce: PoE (Power over ethernet)
- Funkce: L3
- Technológia: Gigabit Ethernet 1000Mbps
- PoE budget (W): 370
- Počet SFP portů: 4
- Počet SFP portů: 4
- Maximální počet portů: 24
- PoE budget (W): 370
- Přenosová rychlost LAN (Mb/s): 570
- Vlastnosti switche: Funkcia POE na portoch
- Management: SNMP/RMON
- Maximálny počet portov: 24
